Airless Spray Hose & Fittings
Airless Spray Hose is commonly used with Airless Spray Pumps and high pressure systems. Airless Spray Hoses are available with an inside diameter from 1/8" up to 1", and lengths from 3' to 100'.
Part# 2000000
1/4" ID x 50' Airless Spray Hose 3600 PSI w/ Female x Female Fittings
- 1/4" ID x 50' Airless Spray Hose
- 3600 PSI working pressure
- Female x Female couplings installed
- Polyester braid reinforcement
- Blue cover
Part# 2000001
1/4" ID x 25' Airless Spray Hose 3600 PSI w/ Female x Female Fittings
- 1/4" ID x 25' Airless Spray Hose
- 3600 PSI working pressure
- Female x Female couplings installed
- Polyester braid reinforcement
- Blue cover
Part# 2000007
Hose:Airless;3500psi;3/8;FF100
- 3/8" ID x 100' Airless Spray Hose
- 3500 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Red cover
Part# 2000020
1/4" ID x 50' Airless Spray Hose 5000 PSI w/ Female x Female Fittings
- 1/4" ID x 50' Airless Spray Hose
- 5000 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Black cover
Part# 2000021
1/4" ID x 25' Airless Spray Hose 5000 PSI w/ Female x Female Fittings
- 1/4" ID x 25' Airless Spray Hose
- 5000 PSI
- Female x Female couplings installed
- Steel braid reinforcement
- Black cover
Part# 2000022
1/4" ID x 10' Airless Spray Hose 5000 PSI w/ Female x Female Fittings
- 1/4" ID x 10' Airless Spray Hose
- 5000 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Black cover
Part# 2000024
1/4" ID x 100' Airless Spray Hose 5000 PSI w/ Female x Female Fittings
- 1/4" ID x 100' Airless Spray Hose
- 5000 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Black cover
Part# 2000030
1/4" ID x 50' Airless Spray Hose 6100 PSI w/ Female x Female Fittings
- 1/4" ID x 50' Airless Spray Hose
- 6100 PSI working pressure
- Female x Female couplings installed
- Steel/Polyester braid reinforcement
- Green cover
Part# 2000031
1/4" ID x 25' Airless Spray Hose 6100 PSI w/ Female x Female Fittings
- 1/4" ID x 25' Airless Spray Hose
- 6100 PSI working pressure
- Female x Female couplings installed
- Steel/Polyester braid reinforcement
- Green cover
Part# 2000032
1/4" ID x 10' Airless Spray Hose 6100 PSI w/ Female x Female Fittings
- 1/4" ID x 10' Airless Spray Hose
- 6100 PSI working pressure
- Female x Female couplings installed
- Steel/Polyester braid reinforcement
- Green color
Part# 2000034
1/4" ID x 6' Airless Spray Hose 6100 PSI w/ Female x Female Fittings
- 1/4" ID x 6' Airless Spray Hose
- 6100 PSI working pressure
- Female x Female couplings installed
- Steel/Polyester braid material
- Green cover
Part# 2000040
3/8" ID x 50' Airless Spray Hose 3500 PSI w/ Female x Female Fittings
- 3/8" ID x 50' Airless Spray Hose
- 3500 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Red cover
Part# 2000049
3/8" ID x 100' Airless Spray Hose 5800 PSI w/ Female x Female Fittings
- 3/8" ID x 100' Airless Spray Hose
- 5800 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Navy cover
Part# 2000050
Airless Fluid Spray Hose 3/8" x 50' 5800 psi F x F
- 3/8" ID x 50' Airless Spray Hose
- 5800 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Navy cover
Part# 2000051
3/8" ID x 25' Airless Spray Hose 5800 PSI w/ Female x Female Fittings
- 3/8" ID x 25' Airless Spray Hose
- 5800 PSI working pressure
- Female x Female couplings installed
- Steel braid reinforcement
- Navy cover
Part# 2000077
1/4" ID x 15' Airless Spray Hose 8000 PSI w/ Female x Female Fittings
- 1/4" ID x 15' Airless Spray Hose
- 8000 PSI working pressure
- Female x Female couplings installed
Part# 2000090
1/4" ID x 50' Airless Spray Hose 9750 PSI w/ Female x Female Fittings
- 1/4" ID x 50' Airless Spray Hose
- 9750 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Black cover
Part# 2000091
1/4" ID x 25' Airless Spray Hose 9750 PSI w/ Female x Female Fittings
- 1/4" ID x 25' Airless Spray Hose
- 9750 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Black cover
Part# 2000092
1/4" ID x 10' Airless Spray Hose 7250 PSI w/ Female x Female Fittings
- 1/4" ID x 10' Airless Spray Hose
- 7250 PSI working pressure
- Female x Female couplings installed
Part# 2000094
1/4" ID x 6' Airless Spray Hose 9750 PSI w/ Female x Female Fittings
- 1/4" ID x 6' Airless Spray Hose
- 9750 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Black cover
Part# 2000100
Airless Fluid Spray Hose 3/4" x 50' 6500 psi F x F
- 3/4" ID
- 50' Length
- 6500 PSI Working Pressure Rating
- Female x Femal Swivel Fittings
- Polymide Core
- Aramid Braid
- -40º F to 200° F Temperature Rating
Part# 2000110
3/8" ID x 50' Airless Spray Hose 8100 PSI w/ Female x Female Fittings
- 3/8" ID x 50' Airless Spray Hose
- 8100 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Red cover
Part# 2000111
3/8" ID x 25' Airless Spray Hose 8100 PSI w/ Female x Female Fittings
- 3/8" ID x 25' Airless Spray Hose
- 8100 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Red cover
Part# 2000114
3/8" ID x 6' Airless Spray Hose 8100 PSI Female x Female Fittings
- 3/8" ID x 6' Airless Spray Hose
- 8100 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Red cover
Part# 2000328
1/2" ID x 50' Airless Spray Hose 7250 PSI w/ Female x Female Fittings
- 1/2" ID x 50' Airless Spray Hose
- 7250 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Black cover

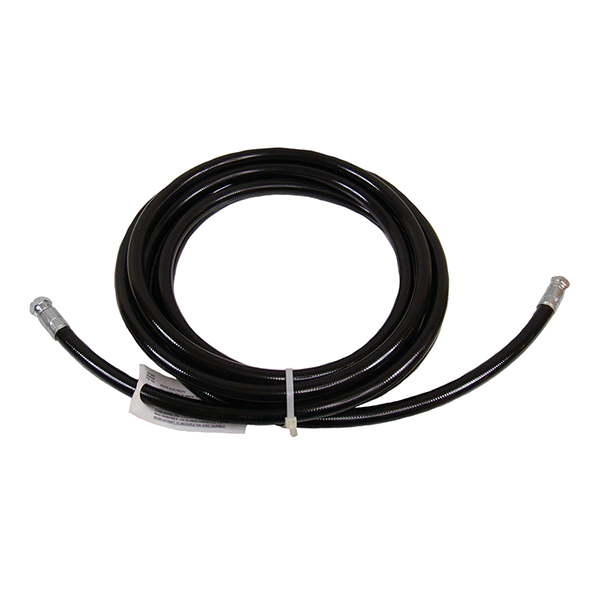

Part# 2000339
1/2" ID x 25' Airless Spray Hose 7250 PSI w/ Female x Female Fittings
- 1/2" ID x 25' Airless Spray Hose
- 7250 PSI working pressure
- Female x Female couplings installed
- Aramid/Steel braid reinforcement
- Black cover
Part# 20100074
100' Heated Hose Bundle 7000 PSI Recirculating
- 100' Recirculating Heated Hose
- 7000 PSI pressure rating
- Includes:
- 1/2" ID fluid hose
- 3/8" ID fluid hose
- 1/4" ID fluid hose
- Two 3/8" ID fluid recirculating hose
- 1/4" ID flush hose
- Hazardous location
- For electric systems
Part# 20100202
1/4" ID x 10' Insulated Hose, Blue, 7000 psi
- 1/4" ID x 10' Insulated Hose
- Blue
- 7000 PSI pressure rating
Part# 20100203
1/4" ID x 10' Insulated Hose, Green, 7000 psi
- 1/4" ID x 10' Insulated Hose
- Green
- 7000 PSI pressure rating
Part# 20100204
1/2" ID x 6' Insulated Hose, Blue, 7000 psi
- 1/2" ID x 6' Insulated Hose
- Blue
- 7000 PSI pressure rating
Part# 20100205
1/2" ID x 6' Insulated Hose, Green, 7000 psi
- 1/2" ID x 6' Insulated Hose
- Green
- 7000 PSI pressure rating
Part# 20100206
1/2" ID x 3' Insulated Hose, Blue, 7000 psi
- 1/2" ID x 3' Insulated Hose
- Blue
- 7000 PSI pressure rating
Part# 20100207
1/2" ID x 3' Insulated Hose, Green, 7000 psi
- 1/2" ID x 3' Insulated Hose
- Green
- 7000 PSI pressure rating
Part# 20100213
1" ID x 4' Insulated Hose, Blue, 750 psi
- 1" ID x 4' Insulated Hose
- Blue
- 750 PSI pressure rating
Part# 20100217
1" ID x 4' Insulated Hose, Green, 750 psi
- 1" ID x 4' Insulated Hose
- Green
- 750 PSI pressure rating
Part# 20100228
1" ID x 7' Insulated Hose, Green, 750 psi
- 1" ID x 7' Insulated Hose
- Green
- 750 PSI pressure rating
Part# 20100254
25' Non-Heated Hose Bundle 7250 PSI
- 25' non-heated hose bundle
- 7250 PSI pressure rating
- Black cover
- General purpose
Part# 20100362
1/4" ID x 6' Insulated Hose 5000 PSI Blue
- 1/4" ID x 6' insulated hose
- 5000 PSI working pressure
- Blue cover color
Part# 20100363
1/4" ID x 6" Insulated Hose 5000 PSI Green
- 1/4" ID x 6' insulated hose
- 5000 PSI working pressure
- Green cover color
Part# 20100455
50' Heated Hose Bundle 7000 PSI Hazardous Location
- 50' heated hose bundle
- 7000 PSI working pressure
- Hazardous location
Part# 20100677
Pipe Nipple 1/2" x 1/2" 6000 PSI
- 1/2" x 1/2" Hex Nipple
- 6000 PSI working pressure
Part# 20101377
100' Heated Hose Bundle 5000 PSI
- 100' heated hose bundle
- 5000 PSI working pressure
Part# 20101387
100' Heated Hose Bundle 7000 PSI
- 100' heated hose bundle
- 7000 PSi working pressure
- General purpose
Part# 20C1006UK50FXF
Airless Fluid Spray Hose 1/4" x 50' 5000 psi F x F
- 1/4" ID x 50' airless spray hose
- 5000 PSI working pressure
- Female x female fittings installed
Part# 20CRP1006UK10FXF
Airless Fluid Spray Hose 1/4" x 10' 5000 psi F x F
- Airless Spray Hose
- 1/4" ID x 10'
- 5000 PSI Working Pressure
- Female x Female Fittings Installed
Part# 20CRP1006UK15FXF
Airless Fluid Spray Hose 1/4" x 15' 5000 psi F x F
- Airless Spray Hose
- 1/4" ID x 15'
- 5000 PSI Working Pressure
- Female x Female Fittings Installed
Part# 20CRP1006UK25FXF
Airless Fluid Spray Hose 1/4" x 25' 5000 psi F x F
- Airless Spray Hose
- 1/4" ID x 25'
- 5000 PSI Working Pressure
- Female x Female Fittings Installed
Part# 20CRP1006UK6FXF
Airless Fluid Spray Hose 1/4" x 6' 5000 psi F x F
- Airless Spray Hose
- 1/4" ID x 6'
- 5000 PSI Working Pressure
- Female x Female Fittings Installed
Part# 20CRP2010UK50FXF
Airless Fluid Spray Hose 3/8" x 50' 6000 psi F x F
- Airless Spray Hose
- 3/8" ID x 50'
- 6000 PSI Working Pressure
- Male x Female Fittings Installed
Part# 20CRP2010UK50MXF
Airless Fluid Spray Hose 3/8" x 50' 6000 psi M x F
- Airless Spray Hose
- 3/8" ID x 50'
- 6000 PSI Working Pressure
- Male x Female Fittings Installed
Part# 20G156849B
Hex Nipple 3/8" 5000 PSI
- 3/8" NPT x 3/8" hex nipple
- 5000 PSI working pressure
Part# 20G156971B
Hex Nipple 1/4" 5000 PSI
- 1/4" NPT x 1/4" NPT hex nipple
- 5000 PSI working pressure
Part# 20G157350B
Pipe Nipple 1/4" x 3/8" 5000 PSI Stainless Steel
- 1/4" NPT x 3/8" NPT hex nipple
- 5000 PSI working pressure
Part# 20G158256B
Swivel 1/2" M x 3/8" F 5000 PSI
- 1/2" Male x 3/8" Female Swivel
- 5000 PSI working pressure
Part# 20G239663B
Gun Swivel 1/4" x 1/4" 7500 PSI Stainless Steel
- 1/4" x 1/4" Swivel Fitting
- 7500 PSI working pressure
Part# 20PFHA24SA0404
Hex Nipple 1/4" 6000 PSI
- 1/4" Male x 1/4" Male Hex Nipple
- 6000 PSI working pressure
Part# 20PFHA24SA0604
Hex Nipple 1/4" x 3/8" 6000 PSI
- 1/4" Male x 3/8" Male Hex Nipple
- 6000 PSI working pressure
Part# 20PFHA24SA0606
Hex Nipple 3/8" 6000 PSI Stainless Steel
- 3/8" Male x 3/8" Male Hex Nipple
- 6000 PSI working pressure
- Stainless steel
Part# 20PFHA24SA0806
Hex Nipple 3/8" x 1/2" 6000 PSI
- 3/8" Male x 1/2" Male Hex Nipple
- 6000 PSI working pressure
Part# 20PFHA24SA0808
Hex Nipple 1/2" 6000 psi
- 1/2" Male x 1/2" Male Hex Nipple
- 6000 PSI working pressure
